Led-paneel
EIGENSCHAPPEN
- led-paneel met opale of microprismatische cover
- hoge lumen/watt verhouding
TOEPASSINGEN

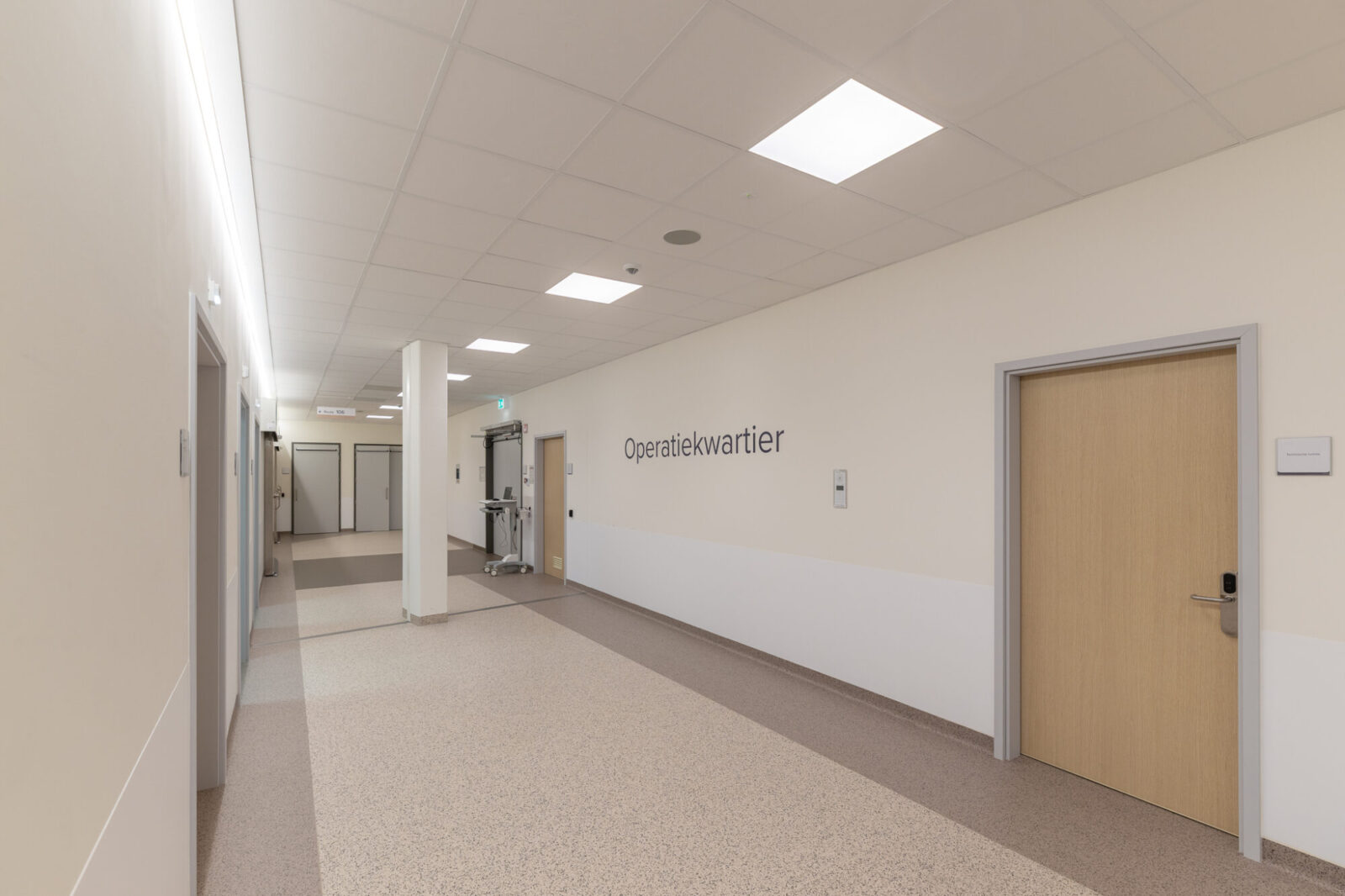

- uitermate geschikt voor utilitaire toepassingen zoals winkels, klaslokalen, kantoren, ziekenhuizen, …

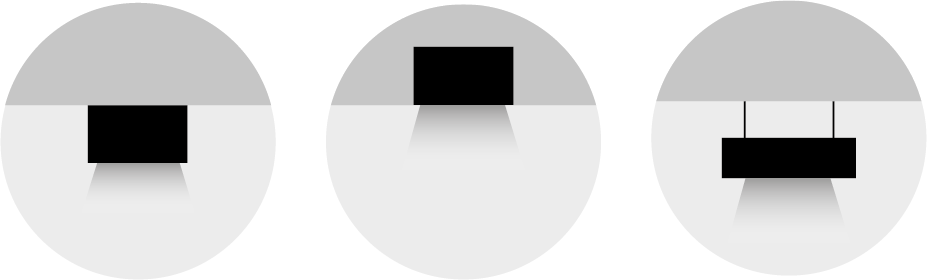

- geschikt voor een gezaagde plafondopening, een systeemplafond, opbouw- of pendelmontage
135 lm/W – opale cover – UGR19 – CRI>83
| ARTIKEL | CCT | LUMEN | WATT | LM/W | L x B x H mm | DATASHEET |
|---|---|---|---|---|---|---|
| DPR60603 | 3000 | max 6156 | max 48 | 135 | 595 x 595 x 35 |  |
| DPR60604 | 4000 | max 6480 | max 48 | 135 | 595 x 595 x 35 | |
| DPR301203 | 3000 | max 6156 | max 48 | 135 | 1195 x 295 x 35 | |
| DPR301204 | 4000 | max 6480 | max 48 | 135 | 1195 x 295 x 35 | |
150 lm/W – opale cover – UGR19 – CRI>83
| ARTIKEL | CCT | LUMEN | WATT | LM/W | L x B x H mm | DATASHEET |
|---|---|---|---|---|---|---|
| DHE60603 | 3000 | max. 6840 | max. 48 | 150 | 595 x 595 x 35 | |
| DHE60604 | 4000 | max. 7200 | max. 48 | 150 | 595 x 595 x 35 | |
| DHE301203 | 3000 | max. 6840 | max. 48 | 150 | 1195 x 295 x 35 | |
| DHE301204 | 4000 | max. 7200 | max. 48 | 150 | 1195 x 295 x 35 | |
microprismatische cover – UGR<19 – CRI>90
| ARTIKEL | CCT | LUMEN | WATT | LM/W | L x B x H mm | DATASHEET |
|---|---|---|---|---|---|---|
| DSU30303 | 3000 | max. 2394 | max. 24 | 105 | 295 x 295 x 35 | |
| DSU30304 | 4000 | max. 2520 | max. 24 | 105 | 295 x 295 x 35 | |
| DSU30603 | 3000 | max. 3933 | max. 36 | 115 | 595 x 295 x 35 | |
| DSU30604 | 4000 | max. 4140 | max. 36 | 115 | 595 x 295 x 35 | |
| DSU60603 | 3000 | max. 5700 | max. 48 | 125 | 595 x 595 x 35 | |
| DSU60604 | 4000 | max. 6000 | max. 48 | 125 | 595 x 595 x 35 | |
| DSU301203 | 3000 | max. 5700 | max. 48 | 125 | 1195 x 295 x 35 | |
| DSU301204 | 4000 | max. 6000 | max. 48 | 125 | 1195 x 295 x 35 | |
| DSU601203 | 3000 | max. 5700 | max. 48 | 125 | 1195 x 595 x 35 | |
| DSU601204 | 4000 | max. 6000 | max. 48 | 125 | 1195 x 595 x 35 | |
DRIVERS
| ARTIKEL | WATT | DIM | DATASHEET |
|---|---|---|---|
| DSD18W | 18 | - | |
| DSD24W | 24 | - | |
| DSD30W | 30 | - | |
| DSD36W | 36 | - | |
| DSD48W | 48 | - | |
| DSD18WDA | 18 | DALI-2 | |
| DSD24WDA | 24 | DALI-2 | |
| DSD30WDA | 30 | DALI-2 | |
| DSD36WDA | 36 | DALI-2 | |
| DSD48WDA | 48 | DALI-2 | |
| DSD30W110 | 30 | 1-10V | |
| DSD36W110 | 36 | 1-10V | |
| DSD48W110 | 48 | 1-10V | |
| DSD30WD | 30 | TRIAC | |
| DSD45WD | 45 | TRIAC | |
ACCESSOIRES
| ARTIKEL | OMSCHRIJVING | VOOR TYPE | KLEUR | DATASHEET |
|---|---|---|---|---|
| DPR3060SFRB | opbouwkader 600x300x70mm | 595x295 | RAL 9005 zwart | |
| DPR3060SFR | opbouwkader 600x300x70mm | 595x295 | RAL 9016 wit | |
| DPR6060SFRB | opbouwkader 600x600x70mm | 595x595 | RAL 9005 zwart | |
| DPR6060SFR | opbouwkader 600x600x70mm | 595x595 | RAL 9016 wit | |
| DPR30120SFRB | opbouwkader 1200x300x70mm | 1195x295 | RAL 9005 zwart | |
| DPR30120SFR | opbouwkader 1200x300x70mm | 1195x295 | RAL 9016 wit | |
| DPR60120SFRB | opbouwkader 1200x600x70mm | 1195x595 | RAL 9005 zwart | |
| DPR60120SFR | opbouwkader 1200x600x70mm | 1195x595 | RAL 9016 wit | |
| DSF6060RFR | inbouwkader 600x600mm | 595x595 | RAL 9016 wit | |
| DSF30120RFR | inbouwkader 1200x300mm | 1195x295 | RAL 9016 wit | |
| DSRSC4 | montageset met 4 klemveren | 295x295, 595x295, 595x595 | - | |
| DSRSC6 | montageset met 6 klemveren | 1195x295, 1195x595 | - | |
| DSPEND2Y1 | pendelset 1,5m met twee ophangpunten | 295x295, 595x295, 595x595, 1195x295 | - | |
| DSPEND2Y5 | pendelset 5m met twee ophangpunten | 295x295, 595x295, 595x595, 1195x295 | - | |
| DSPEND4H1 | pendelset 1,5m met vier ophangpunten | 295x295, 595x295, 595x595, 1195x295 | - | |
| DSPEND4H5 | pendelset 5m met vier ophangpunten | 295x295, 595x295, 595x595, 1195x295 | - | |
| DSSAFC1 | valbeveiliging met zelfsluitende haak | alle types | - | |
| LLEME3H55 | noodunit 20-55VDC 5W 3h LifePO4 | alle types | - | |
| 92.932.3053.1 | Wieland stekker 3-polig GST18i5 male | alle types | - | |
| 92.954.4453.0 | Wieland stekker 5-polig GST18i5 male | alle types | - |
