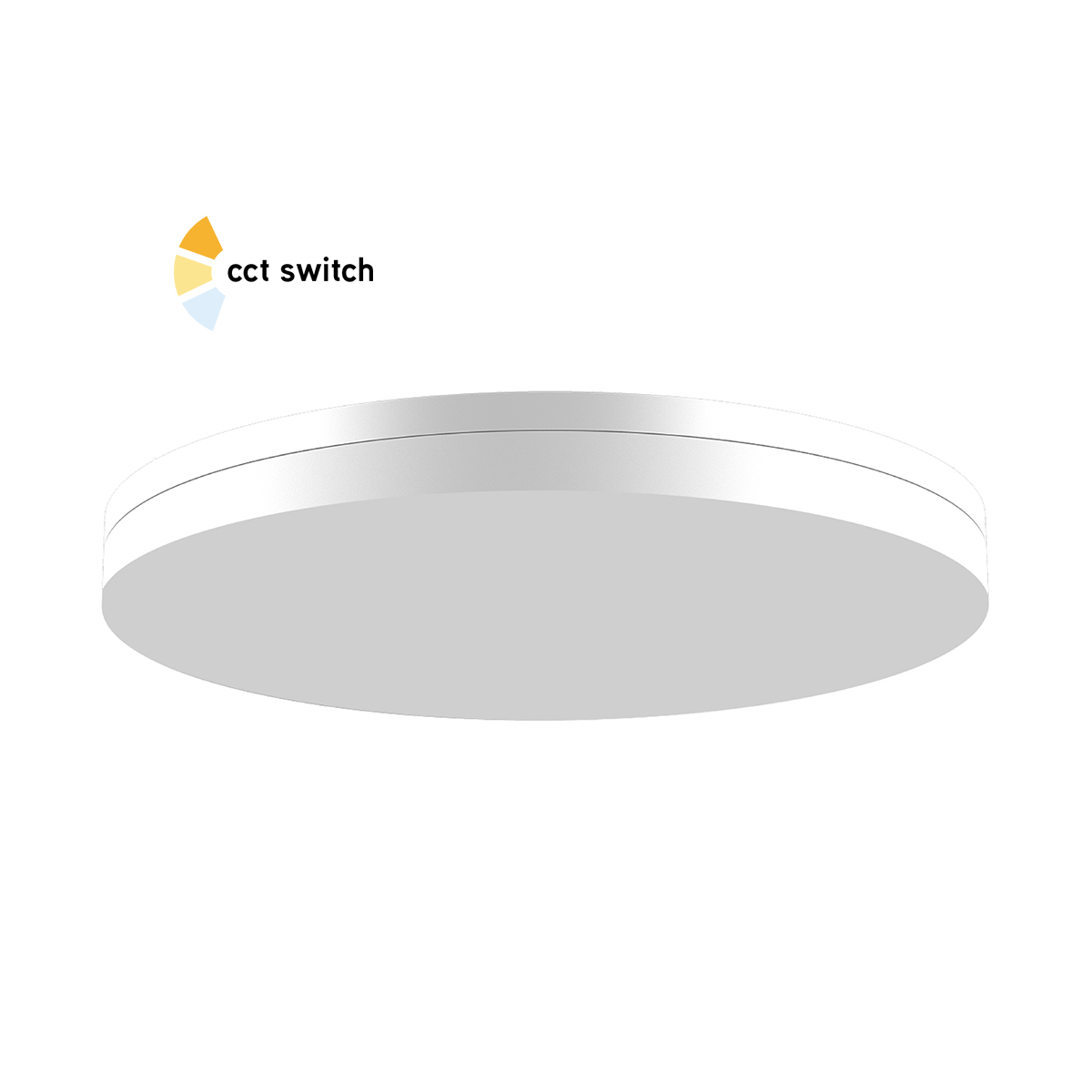

PLAFOND- OF WANDARMATUUR – ORION
RAL KLEUREN
𒊹 RAL9005 / ◯ RAL9016
EIGENSCHAPPEN
- prijstechnisch plafond- of wandarmatuur

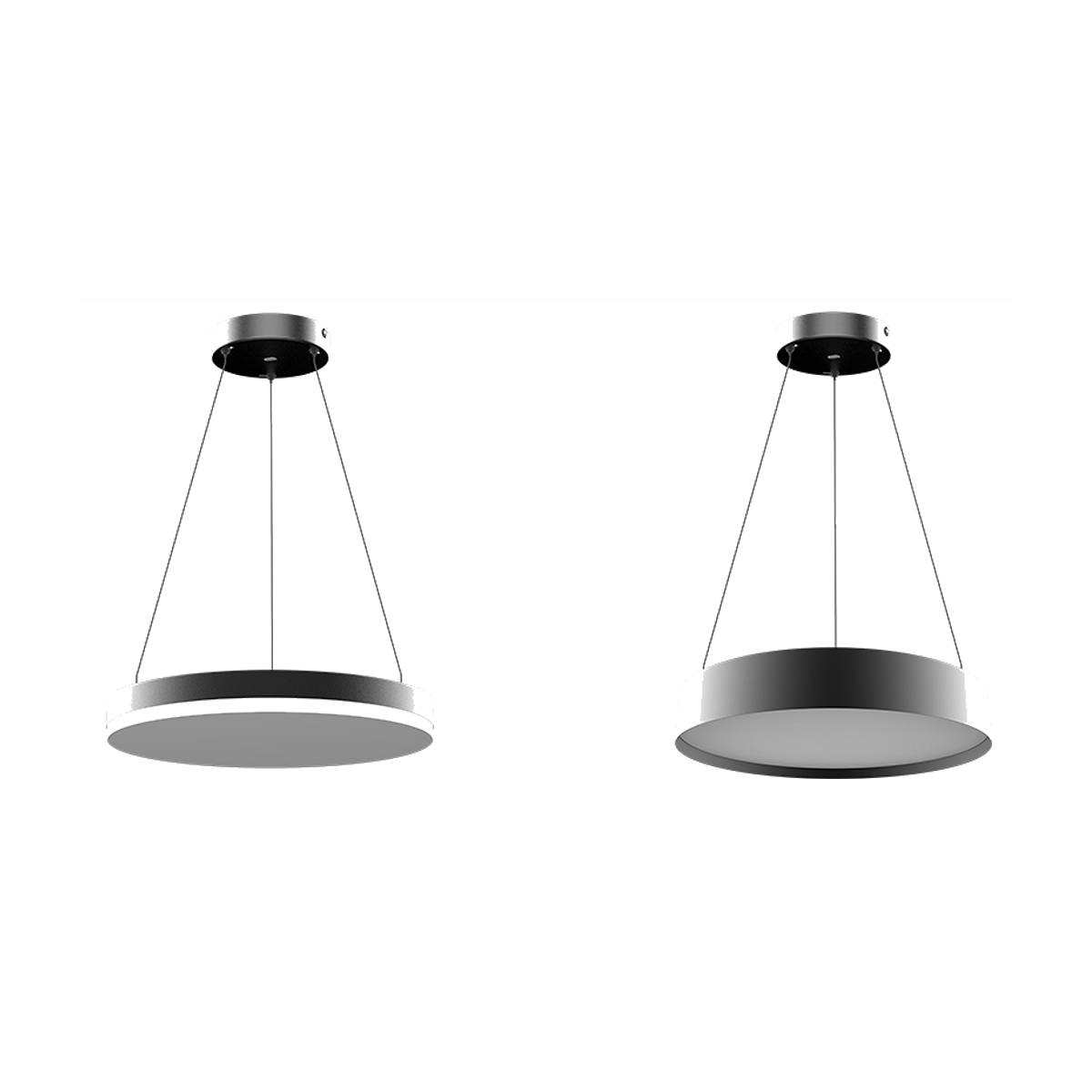

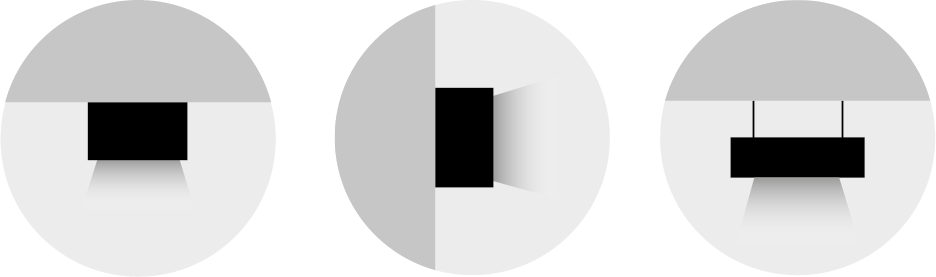

- moderne en strakke behuizing geschikt voor opbouw- of pendelmontage

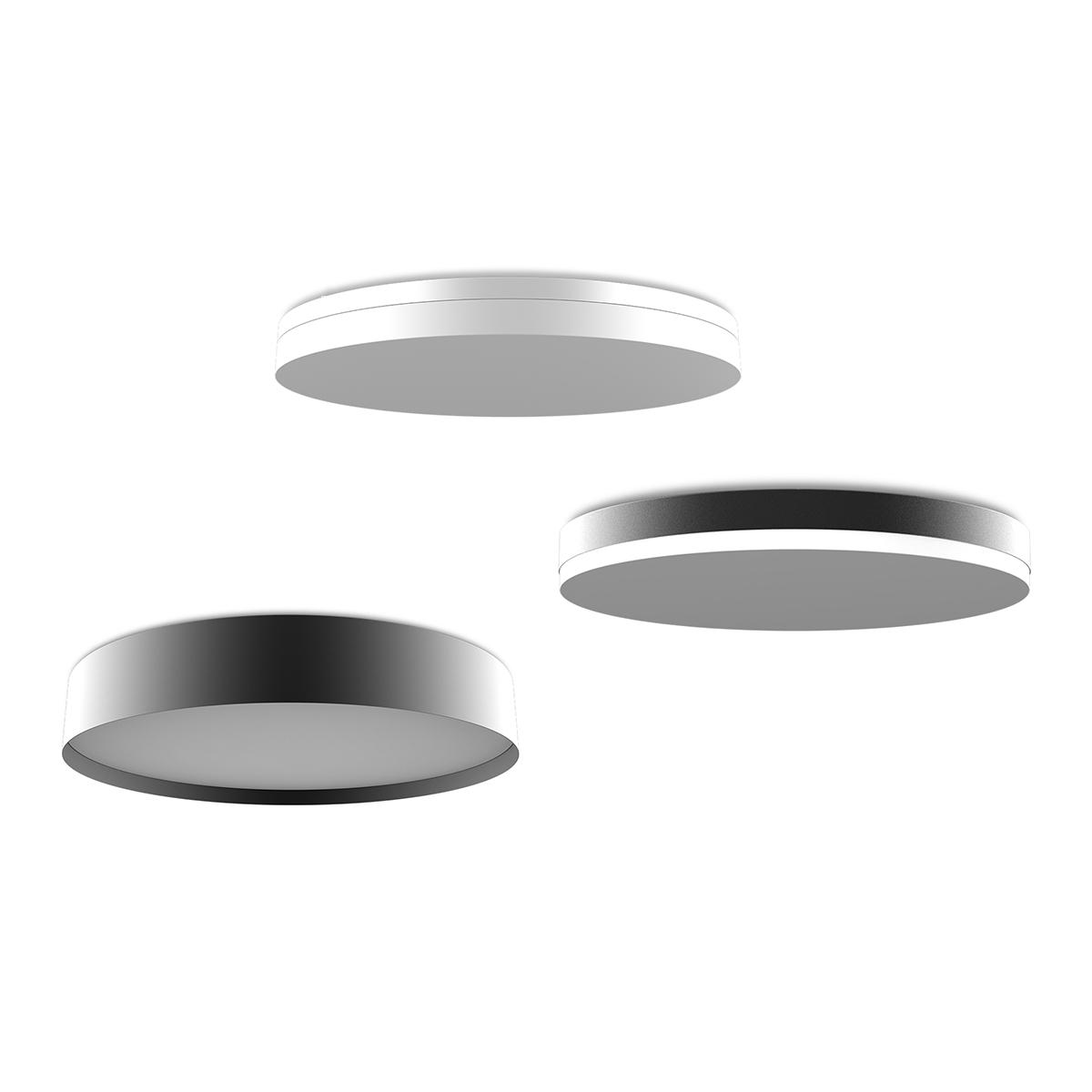

- multifunctioneel inzetbaar met optionele decoratieve ringen
- vermogen en kleurtemperatuur instelbaar
SENSOR EIGENSCHAPPEN
- sensor gevoeligheid 10/25/50/75/100%
- sensor master/slave bekabeling mogelijk
- sensor met altijd aan functie
- noodunit met autotest functie
Orion
| ARTIKEL | CCT SWITCH | LUMEN | WATT | DIM | SENSOR | NOOD | KLEUR | AFMETINGEN mm | DATASHEET |
|---|---|---|---|---|---|---|---|---|---|
| ORNW20 | 3000/4000/5700 | 2400 | 10/15/20 | - | - | - | wit | 290x290x58 |  |
| ORNW20MW | 3000/4000/5700 | 2400 | 10/15/20 | - | MW | - | wit | 290x290x58 | |
| ORNW20DA | 3000/4000/5700 | 2400 | 20 | DALI-2 | - | - | wit | 290x290x58 | |
| ORNW30 | 3000/4000/5700 | 3600 | 15/23/30 | - | - | - | wit | 360x360x58 | |
| ORNW30EM | 3000/4000/5700 | 3600 | 15/23/30 | - | - | 2W 3h | wit | 360x360x58 | |
| ORNW30MW | 3000/4000/5700 | 3600 | 15/23/30 | - | MW | - | wit | 360x360x58 | |
| ORNW30MWEM | 3000/4000/5700 | 3600 | 15/23/30 | - | MW | 2W 1h | wit | 360x360x58 | |
| ORNW30DA | 3000/4000/5700 | 3600 | 30 | DALI-2 | - | - | wit | 360x360x58 | |
| ORNW30EMDA | 3000/4000/5700 | 3600 | 30 | DALI-2 | - | 2W 3h | wit | 360x360x58 | |
| ORNW40 | 3000/4000/5700 | 4800 | 20/30/40 | - | - | - | wit | 460x460x59 | |
| ORNW40EM | 3000/4000/5700 | 4800 | 20/30/40 | - | - | 2W 3h | wit | 460x460x59 | |
| ORNW40MW | 3000/4000/5700 | 4800 | 20/30/40 | - | MW | - | wit | 460x460x59 | |
| ORNW40MWEM | 3000/4000/5700 | 4800 | 20/30/40 | - | MW | 2W 1h | wit | 460x460x59 | |
| ORNW40DA | 3000/4000/5700 | 4800 | 40 | DALI-2 | - | - | wit | 460x460x59 | |
| ORNW40EMDA | 3000/4000/5700 | 4800 | 40 | DALI-2 | - | 2W 3h | wit | 460x460x59 | |
Orion - toebehoren
| ARTIKEL | OMSCHRIJVING | KLEUR | AFMETINGEN mm | DATASHEET |
|---|---|---|---|---|
| ORNDRB290B | orion deco ring 37mm 290mm | zwart | 292,5x292,5x37 | |
| ORNDRB290W | oriondeco ring 37mm 290mm | wit | 292,5x292,5x37 | |
| ORNDRB360B | orion deco ring 37mm 360mm | zwart | 364,5x364,5x37 | |
| ORNDRB360W | oriondeco ring 37mm 360mm | wit | 364,5x364,5x37 | |
| ORNDRB460B | orion deco ring 37mm 460mm | zwart | 464,5x464,5x37 | |
| ORNDRB460W | orion deco ring 37mm 460mm | wit | 464,5x464,5x37 | |
| ORNDR290B | orion deco ring 72mm 290mm | zwart | 292,5x292,5x58 | |
| ORNDR290W | oriondeco ring 72mm 290mm | wit | 292,5x292,5x72 | |
| ORNDR360B | orion deco ring 72mm 360mm | zwart | 364,5x364,5x72 | |
| ORNDR360W | oriondeco ring 72mm 360mm | wit | 364,5x364,5x72 | |
| ORNDR460B | orion deco ring 72mm 460mm | zwart | 464,5x464,5x72 | |
| ORNDR460W | orion deco ring 72mm 460mm | wit | 464,5x464,5x72 | |
| ORNSUS1MB | orion plafondrozet met pendelset 1m | zwart | 1200x175x40 | |
| ORNSUS1MW | orionplafondrozet met pendelset 1m | wit | 1200x175x40 | |
